Waterproof 12mm PCB(14MM Tube) 5P SMD Connector
IP67 waterproof connector for outdoor LED strip installations.
Brief Overview

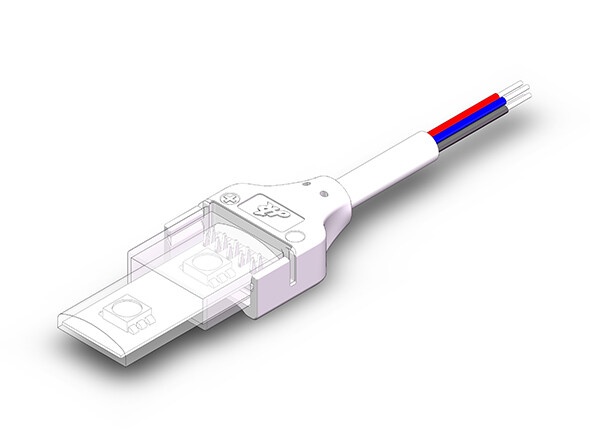

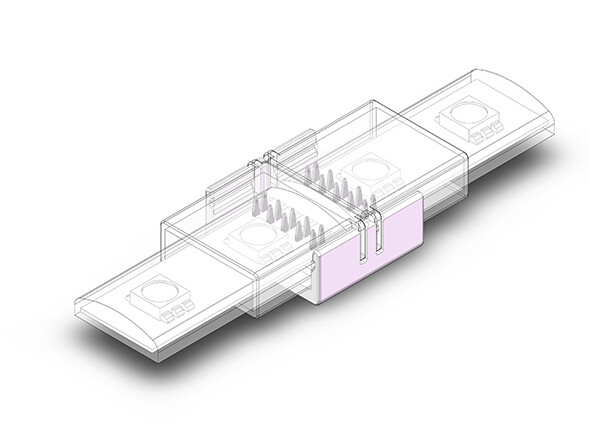

Waterproof 12mm PCB(14MM Tube) 5P SMD Connector
Standard Option
Item Number | Connection Types | Wire Specification | Working Voltage / Current |
110#/HR-IP-SMD-3PIN-12MM-A | Strip to Strip joint | No Wire | DC3-220V/6A |
109#/HR-IP-SMD-3PIN-12MM-B | Strip to Strip with wire | 180mm 20AWG PVC Red/Black | DC3-220V/6A |
111#/HR-IP-SMD-3PIN-12MM-C | Strip to Strip bridge | 170mm 20AWG PVC Red/Black | DC3-220V/6A |
Technical Data
Product name | Waterproof 12mm PCB(14MM Tube) 5P SMD Connector |
|---|---|
PCB Wide/Pins | 12mm 5P |
Compatible Led Strip | 12mm PCB; Squared encapsulated extruded deimension 14x4mm SMD Strip Light |
IP Rating | IP67 Waterproof |
Votage | DC3V-220V |
Current | Max 6A (based on @TA=30℃ PCB=3OZ） |
Material | Nylon+PC+Copper (tin plating copper, wire type) |
Surface Treatment | Nickel Plating |
Wire Gauge | 20AWG/0.52mm² |
Wire Length | 109# 180mm 111# 170mm |
Housing Size | 35.5x19.2x8.5mm |
Color | White & Transparent |
Application Scenarios
Outdoor SMD strip lighting installation
Commercial display and signage
Home decoration ambient lighting
Retail store shelf lighting
Exhibition booth illumination
Product FAQ
What does IP67 mean?
IP67 means complete dust protection (6) and protection against temporary water immersion up to 1 meter for 30 minutes (7).
Can I submerge this connector permanently?
IP67 protects against temporary immersion. For permanent underwater use, we recommend IP68 rated solutions.
Is UV resistant for direct sunlight?
Yes, the silicone housing is UV-resistant and designed for outdoor exposure. However, prolonged direct UV may eventually degrade any material.
