Waterproof 10mm PCB(12MM Tube) 4P COB Strip Connector
IP67 waterproof connector for outdoor LED strip installations.
Brief Overview
Waterproof 10mm PCB(12MM Tube) 4P COB Strip Connector
Standard Option
Item Number | Connection Types | Wire Specification | Working Voltage / Current |

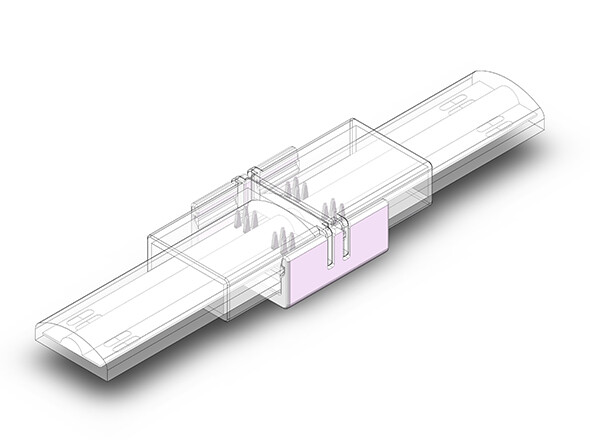

87#/HR-IP-COB-4PIN-10MM-A | Strip to Strip joint | No Wire | DC3-220V/6A |

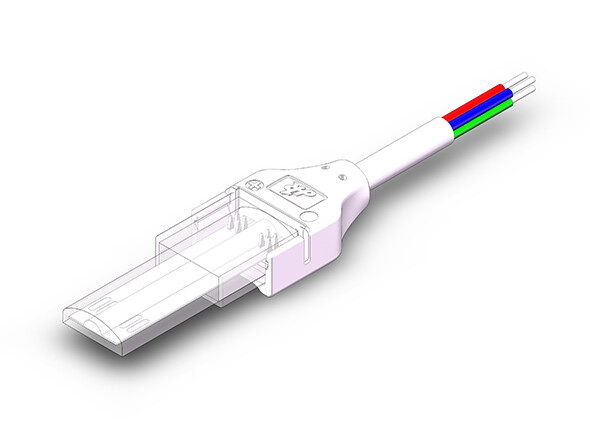

89#/HR-IP-COB-4PIN-10MM-B | Strip to Strip with wire | 180mm 20AWG PVC Red/Black | DC3-220V/6A |
90#/HR-IP-COB-4PIN-10MM-C | Strip to Strip bridge | 170mm 20AWG PVC Red/Black | DC3-220V/6A |
Technical Data
Product name | Waterproof 10mm PCB(12MM Tube) 4P COB Strip Connector |
|---|---|
PCB Wide/Pins | 10mm 4P |
Compatible Led Strip | 10mm PCB; Squared encapsulated extruded deimension 12x4mm |
IP Rating | IP67 Waterproof |
Votage | DC3V-220V |
Current | Max 6A (based on @TA=30℃ PCB=3OZ） |
Material | Nylon+PC+Copper (tin plating copper, wire type) |
Surface Treatment | Nickel Plating |
Wire Gauge | 20AWG/0.52mm² |
Wire Length | 89# 180mm 90# 170mm |
Housing Size | 35.5x17x8.5mm |
Color | White & Transparent |
Application Scenarios
Outdoor cob strip lighting installation
Commercial display and signage
Home decoration ambient lighting
Retail store shelf lighting
Exhibition booth illumination
Product FAQ
What does IP67 mean?
IP67 means complete dust protection (6) and protection against temporary water immersion up to 1 meter for 30 minutes (7).
Can I submerge this connector permanently?
IP67 protects against temporary immersion. For permanent underwater use, we recommend IP68 rated solutions.
Is UV resistant for direct sunlight?
Yes, the silicone housing is UV-resistant and designed for outdoor exposure. However, prolonged direct UV may eventually degrade any material.
