2-Pin Solder-free Connector (12mm)

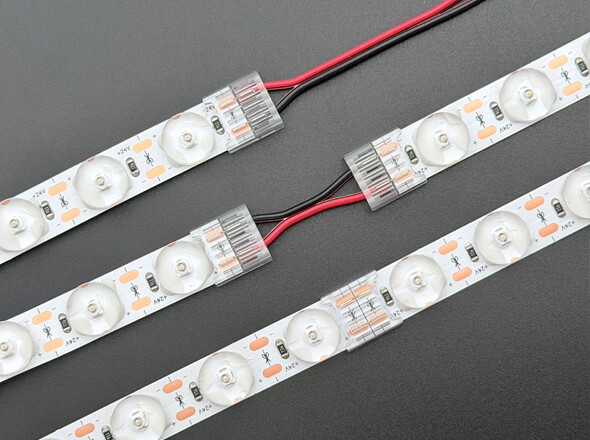

2-pin solder-free connector for 12mm single-color LED strips.
Brief Overview
2-pin solder-free connector for 12mm single-color LED strips.
Standard Option
Item Number | Connection Types | Wire Specification | Working Voltage / Current |
48#/HR-S-SMD-2PIN-12MM-A | Strip to Strip Joint | No Wire | DC3-48V/4A |
47#/HR-S-SMD-2PIN-12MM-B | Strip to Power | 150mm 22AWG PVC Red/Black | DC3-48V/4A |
49#/HR-S-SMD-2PIN-12MM-C | Strip to Strip Bridge | 150mm 22AWG PVC Red/Black | DC3-48V/4A |
Technical Data
Product name | 2-Pin Solder-free Connector (12mm) |
PCB Wide/Pins | 12mm 2P |
IP Rating | IP20 Non-waterproof |
Votage | DC3V-48V |
Current | Max 4A (based on @TA=30℃ PCB=3OZ） |
Material | PC+Copper (tin plating copper, wire type) |
Surface Treatment | Nickel Plating |
Wire Gauge | 22AWG/0.34mm² |
Wire Length | 15mm or customized length |
Housing Size | 13.8x13.5x3.7mm(Joint); 13.8x13.5x4.2mm(with wire); |
Application Scenarios
Indoor LED strip lighting installation
Commercial display and signage
Home decoration ambient lighting
Retail store shelf lighting
Exhibition booth illumination
Product FAQ
What LED strip width is this connector compatible with?
This connector is designed for 8mm wide single-color LED strips.
Do I need any tools to install this connector?
No tools required. Simply insert the LED strip into the connector and press down the lever for a secure solder-free connection.
What is the maximum current rating?
The connector supports up to 4A current at DC3-48V, suitable for most standard LED strip applications.
